Small Engine Carburetor: 7 Essential Diagnostic & Repair Checks

Small engine carburetor problems can cause hard starting, surging, stalling, black smoke, fuel leakage, or weak performance under load. But those symptoms are not unique to the carburetor. Fuel quality, spark, airflow, choke operation, linkages, compression, and safety controls can produce similar behavior. The safest approach is to diagnose the complete fuel-and-air system before removing or adjusting the carburetor.

1. Confirm the Carburetor Is Actually the Problem

Start with the symptom. A mower that will not start at all needs a different diagnostic path from one that surges at steady speed or leaks fuel from the air-filter area. Before removing the carburetor, confirm that the engine has the correct fuel, adequate airflow, and the ignition or safety-control conditions required by the exact mower.

Use our lawn mower troubleshooting guide when the symptom may involve ignition, safety switches, blade load, vibration, or engine condition. The engine surging guide is useful when speed rises and falls repeatedly.

2. Work Safely Around Fuel and Vapors

Carburetor service involves gasoline, which means fire safety comes before diagnosis. The U.S. Consumer Product Safety Commission warns that escaped fuel vapors can ignite if they reach a flame or spark and can flash back toward a fuel container.

• Work outdoors or in a well-ventilated area away from ignition sources.
• Let the engine cool before opening the fuel system.
• Follow the mower and engine manual for ignition isolation.
• Use an approved fuel container.
• Shut off the fuel valve or use the manufacturer-approved method to prevent fuel flow before disconnecting a line.
• Keep rags, solvent, and spilled fuel away from heaters, pilot lights, switches, and other ignition sources.

CPSC’s current fuel safety guidance also advises storing gasoline containers in cool, ventilated areas away from homes and ignition sources.

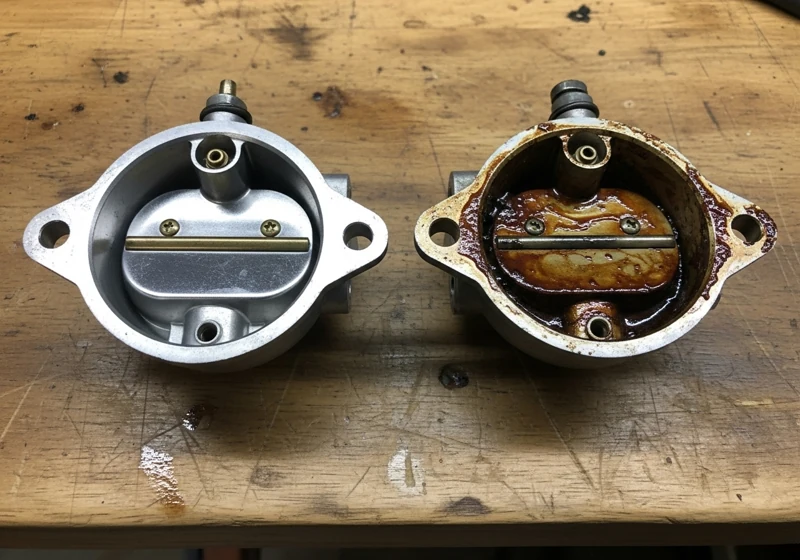

3. Clean the Carburetor Without Damaging Calibrated Passages

Briggs & Stratton’s current carburetor guidance says dirt, varnish, and gasoline deposits can block fuel passages. For cleaning, it recommends carburetor cleaner and compressed air, and its rebuild guidance specifically warns against using wire or tools that can damage or further obstruct small openings.

That means a generic recommendation to push twist-tie wire, welding tip cleaners, drill bits, or other metal probes through a jet is not appropriate. Jet openings are calibrated. Enlarging or scratching them can change the fuel metering even if the opening looks clean afterward.

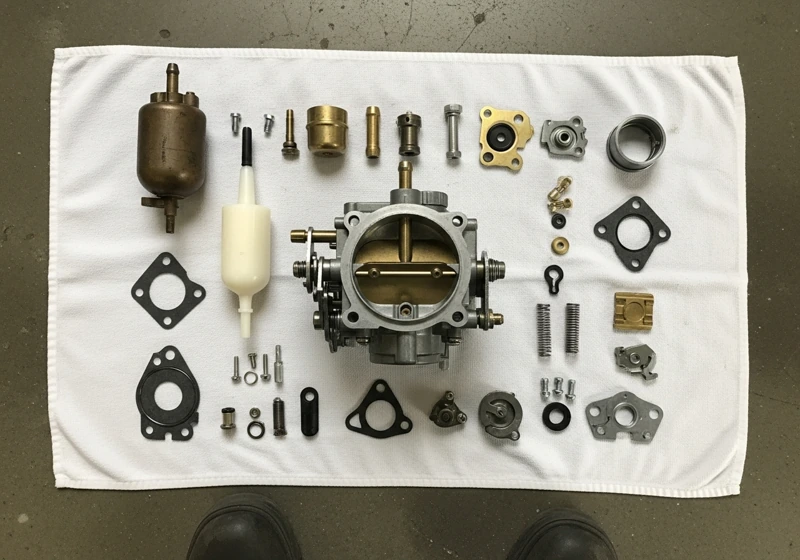

The exact disassembly procedure depends on the carburetor. On many float-bowl designs, service can involve removing the bowl, float, needle, main jet, and emulsion tube. Diaphragm carburetors use a different layout. Photograph linkage positions before disassembly and keep small components organized.

Briggs & Stratton’s current carburetor rebuild guidance says to inspect components after cleaning and replace parts that are damaged or permanently clogged.

4. Inspect the Float, Needle, Gaskets, and Casting

Fuel overflow or leakage often points to a float, needle, seat, gasket, or contamination problem. Do not keep running an engine that is leaking gasoline. Shut it down, isolate ignition, and identify the leak source before further operation.

Inspect the float for damage and verify that it moves freely according to the service information for the carburetor. Inspect the needle tip and seat, bowl seal, mounting gasket, and any O-rings or diaphragms. Replace damaged sealing components rather than trying to compensate with excessive tightening or sealant not specified by the manufacturer.

Structural condition also matters. Cracked castings, stripped threads, severe corrosion, warped mating surfaces, or damaged adjustment seats can make a carburetor poor candidate for continued repair. That decision should be based on serviceability and parts support, not a universal age or price threshold.

Float-Bowl vs Diaphragm Carburetors

Not every small engine carburetor stores fuel in a float bowl. Many lawn mowers use a float-type design, while some handheld and older small engines use a diaphragm system. The service method changes with the design.

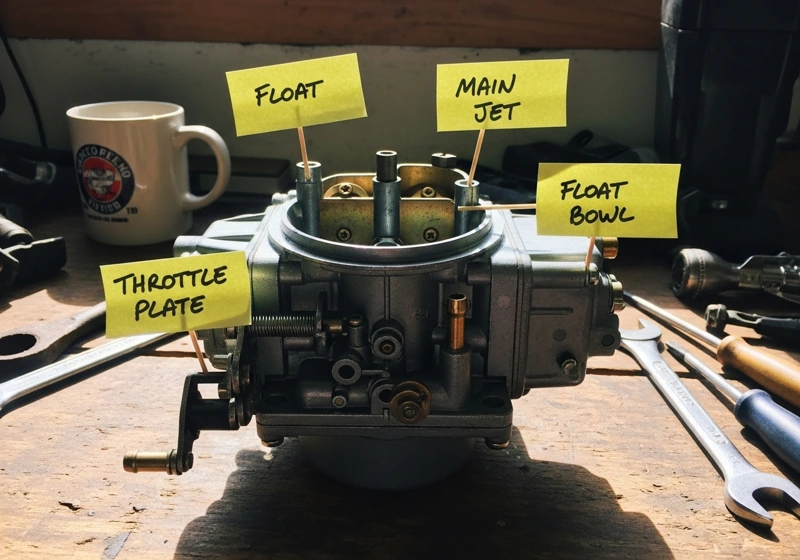

In a float-bowl carburetor, the float and needle regulate incoming fuel level. Problems can come from contamination, a sticking float, a worn needle, a blocked jet, or damaged bowl seals. In a diaphragm carburetor, flexible diaphragms and check-valve functions meter or pump fuel; age, stiffness, tears, or incorrect gasket order can affect operation.

Identify the carburetor type before ordering parts. A rebuild kit for a float carburetor and a diaphragm/gasket set for another design are not interchangeable service approaches.

Fuel-Flow Checks Before Disassembly

Before removing the carburetor, confirm that fuel can actually reach it. A restricted tank vent, clogged filter, pinched line, shut fuel valve, contaminated tank outlet, or deteriorated hose can mimic an internal carburetor problem.

Inspect the fuel line externally for cracking, swelling, collapse, and routing problems. If the manufacturer provides a fuel-flow test, follow it with the engine cold and the ignition isolated. Do not improvise an open-fuel test near ignition sources.

If fuel reaches the carburetor but the bowl remains empty, the inlet needle, float, or internal passage deserves attention. If the bowl repeatedly overfills, investigate the same components from the opposite direction: the system may not be shutting fuel off correctly.

5. Carburetor Adjustment Is Not Universal

Older service information often includes baseline turns for high-speed and idle-mixture screws. Do not apply those numbers to an unidentified carburetor. Briggs & Stratton states that mixture adjustment instructions apply to older, non-EPA-regulated carburetors, while many current carburetors are factory-set to meet emissions requirements.

If the engine manual provides an idle-speed adjustment, follow that exact procedure and target speed. If the carburetor has sealed mixture controls, limiter caps, or no mixture screws, do not modify the carburetor to create an adjustment that the manufacturer did not provide.

The same caution applies to “turn it out one and a half turns” advice. That can be a legitimate starting point for a specific older carburetor described in its service documentation, but it is not a safe universal baseline for modern lawn mower engines.

6. Honda and Briggs Carburetors Need Model-Specific Diagnosis

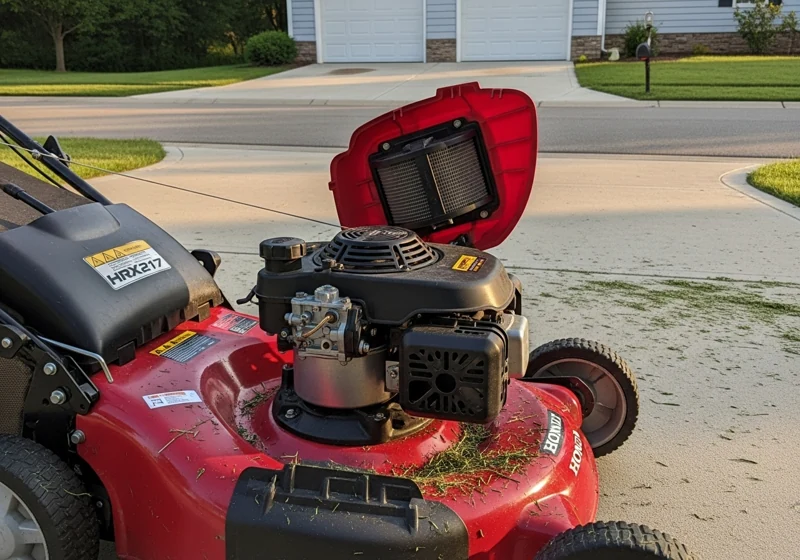

Honda publishes separate carburetor check sheets for different engine families. Its GCV170/GCV200 sheet, for example, covers hard starting, starts-then-stops, unstable idle, surging, high-speed performance, overflow, limiter-cap service, and storage. The company publishes different check sheets for GC/GCV135/160/190, GX, and other families.

That is why “Honda carburetor” is not one service procedure. Identify the engine code and use the matching publication from Honda’s Power Products Support Publications.

Briggs & Stratton follows the same model-first principle. Its current carburetor maintenance guide begins by directing the owner to the operator manual and distinguishes serviceable older adjustments from modern factory-set carburetors.

7. Rebuild or Replace? Use Condition, Not a Fixed Price Rule

Cleaning makes sense when contamination is the main problem and the carburetor body, threads, sealing surfaces, float, and serviceable components remain in good condition. A rebuild can make sense when the manufacturer supports service parts and the required seals, needle, diaphragm, or other components are available.

Replacement becomes more reasonable when the carburetor body is cracked, severely corroded, stripped, warped, or permanently blocked, or when the exact service parts are unavailable. Do not decide from a generic price comparison because OEM and aftermarket carburetors vary widely in quality, fit, emissions configuration, choke system, and included hardware.

Our OEM vs aftermarket parts guide explains how to verify part numbers and compatibility before ordering. Use the engine model and carburetor part number, not the mower color or deck width.

Rebuild Workflow: What to Record

If the carburetor is serviceable, document the assembly before taking it apart. Photograph linkage positions, choke and throttle connections, gasket order, bowl orientation, and any springs or clips. Small errors in linkage routing can create a new problem even after the fuel passages are clean.

Lay components out in removal order and compare them with the service diagram. Replace seals and soft parts when the manufacturer or rebuild kit specifies replacement. Do not reuse a hardened gasket simply because it looks intact; sealing depends on material condition, not appearance alone.

During reassembly, avoid overtightening screws into aluminum castings. Use the specified fastener procedure and confirm that the throttle and choke move freely before returning fuel to the system.

Post-Repair Verification

After cleaning, rebuilding, or replacing the carburetor, inspect carefully for leaks before normal mowing. Restore the fuel supply, follow the manufacturer’s start procedure, and observe the carburetor, fuel-line connections, bowl seal, and air-filter area.

A successful repair should restore the original symptom without creating a new one. If hard starting improves but the engine now surges, leaks, races, or stalls under load, stop and recheck linkage routing, gasket placement, choke operation, part compatibility, and any manufacturer-specified adjustments.

Do not use a short no-load run as proof that every problem is solved. The engine should also respond normally during the operating checks permitted by the mower manual. If abnormal behavior remains, return to diagnosis instead of turning undocumented mixture screws.

Verify a Replacement Carburetor Before Installation

If replacement is the better option, compare more than mounting-bolt spacing. Check the engine model, carburetor part number, choke system, throttle linkage, fuel-inlet position, solenoid or electrical connection where fitted, gasket arrangement, and any emissions-related configuration.

An aftermarket carburetor can be appropriate when the supplier explicitly cross-references the correct original part and documents the application. Avoid listings that rely only on a broad mower brand or deck size. Two mowers that look identical can use different engines or control systems.

After installation, keep the original part and packaging until the mower passes the manufacturer’s operational checks. If the original symptom remains, do not assume the new carburetor is defective. Revisit fuel flow, ignition, intake leaks, governor/linkage operation, and engine condition.

Preventing Fuel-System Problems

Fuel storage and air filtration have a major effect on carburetor reliability. Use fresh fuel that meets the engine manufacturer’s requirements, keep the air filter serviced, and follow the exact storage procedure for the engine. Some manufacturers recommend stabilizer for stored fuel; others provide drain or dry-storage procedures.

Avoid universal habits such as starting the mower briefly every month during storage. That can conflict with the manufacturer’s storage procedure and can introduce moisture, fuel degradation, or incomplete warm-up. Follow the engine manual instead.

For seasonal preparation, use our pre-season tune-up guide and winterizing guide.

Common Mistakes That Create New Carburetor Problems

• Ordering by mower model only: use the engine and carburetor identification where required.
• Forcing jets with metal probes: calibrated openings can be damaged.
• Reusing damaged gaskets: air or fuel leaks can remain after cleaning.
• Mixing up linkages: incorrect spring or choke routing can cause unstable speed or starting problems.
• Changing multiple adjustments at once: you lose the ability to identify what changed engine behavior.
• Assuming every surge is carburetor-related: governor, ignition, air leaks, fuel flow, and engine condition can also matter.
• Ignoring a fuel leak: leakage is a safety problem, not just a tuning issue.

DIY Boundaries

External inspection, approved cleaning, gasket replacement, and manufacturer-documented rebuild procedures can be reasonable DIY work for someone comfortable handling fuel safely. Stop when the repair requires emissions-system modification, drilling or resizing jets, repairing damaged castings, or making adjustments that are not described for the exact carburetor.

If a fuel leak continues after service, the engine repeatedly floods, or the mower still has the same symptom after the fuel system has been verified, professional diagnosis can prevent repeated parts replacement. A carburetor is only one part of the complete engine system.

FAQs

Editorial note: This guide is based on current manufacturer carburetor service information and public fuel-safety guidance. Carburetor design, adjustment, emissions configuration, and serviceability vary by engine model. Use the exact engine manual and carburetor documentation before cleaning, adjusting, rebuilding, or replacing components.
